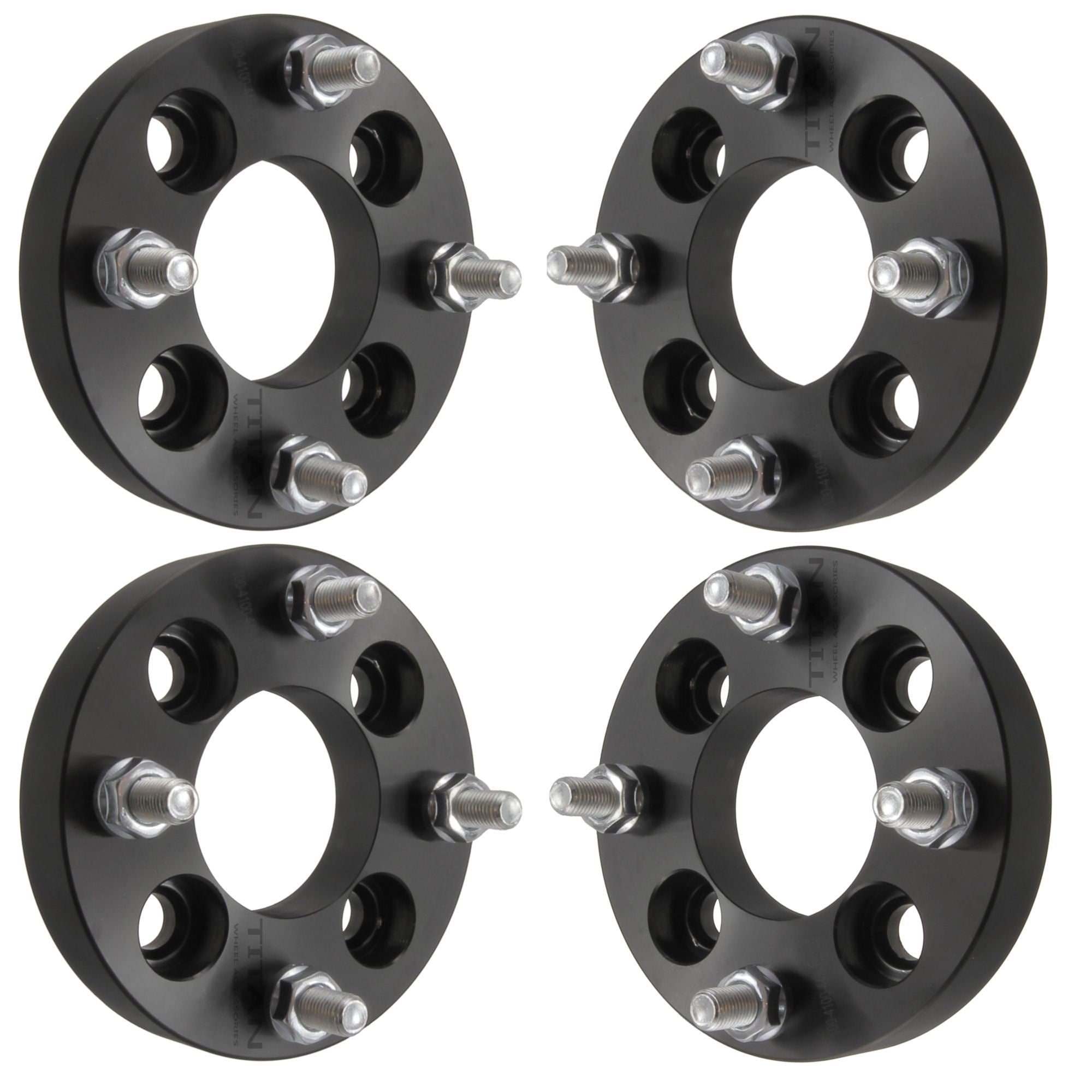

Specifications

• Vehicle Bolt Pattern: 4×100 (4×4)
• Wheel Bolt Pattern: 4×4.5 (4×114.3)
• Hub Bore: 67.1mm
• Thread Pitch: 12×1.5
• Thickness: Each Spacer Measures 1 inch Thick

• Vehicle Fitments

  THESE ADAPTERS WILL BOLT UP TO THE FOLLOWING VEHICLES (WHEEL ADAPTERS WILL CHANGE YOUR BOLT PATTERN)

  1986-1989 Honda Accord
  • 1988-2005 Honda Civic
  • 1988-1991 Honda CRX
  • 1992-1997 Honda Civic Del Sol
  • 2006-2010 Honda Fit
  • 1988-1991 Honda Prelude
  • 1986-2001 Acura Integra
  • 1991-1994 Mazda 323
  • 1989-2005 Mazda Miata
  • 1991-1998 Mazda Protege
  • 2004-2007 Scion xA
  • 2004-2007 Scion xB
  • 1986-2005 Toyota Celica
  • 1993-2002 Toyota Corolla
  • 2000-2005 Toyota Echo
  • 2000-2005 Toyota MR2 Spyder
  • 1992-1999 Toyota Paseo
  • 1989-2002 Toyota Tercel
  • 2007-2011 Toyota Yaris
  • 2004-2011 Chevrolet aveo
  • 1994-1996 Dodge neon
  • 2004-2007 Saturn Ion
  • 1991-2002 Saturn SL
  • • ADDITIONAL INFORMATION
    • • Please ensure that the your vehicle has the same studs as the adapters, otherwise additional lugs WILL BE required
      • Make sure that all adapters get a FULL 6-8 Turns of the Lugs when Tightening, Failure to do so, can result in damage to your vehicle
      • Installation needs to be performed by a trained professional
      • • It s Possible that you OEM Studs are longer than the spacer is thick, if so you have a few options:
          1. Your lugs studs will need to be shortened by grinding them down
          3. You can replace your studs will shorter studs
          5. if you wheels have cavities in the backside, between the mounting holes, then you should be OK (will need to make sure flush)
          6. 3. ALWAYS ENSURE THAT THERE IS NO GAP BETWEEN THE SPACERS AND THE HUB OF THE WHEELS
